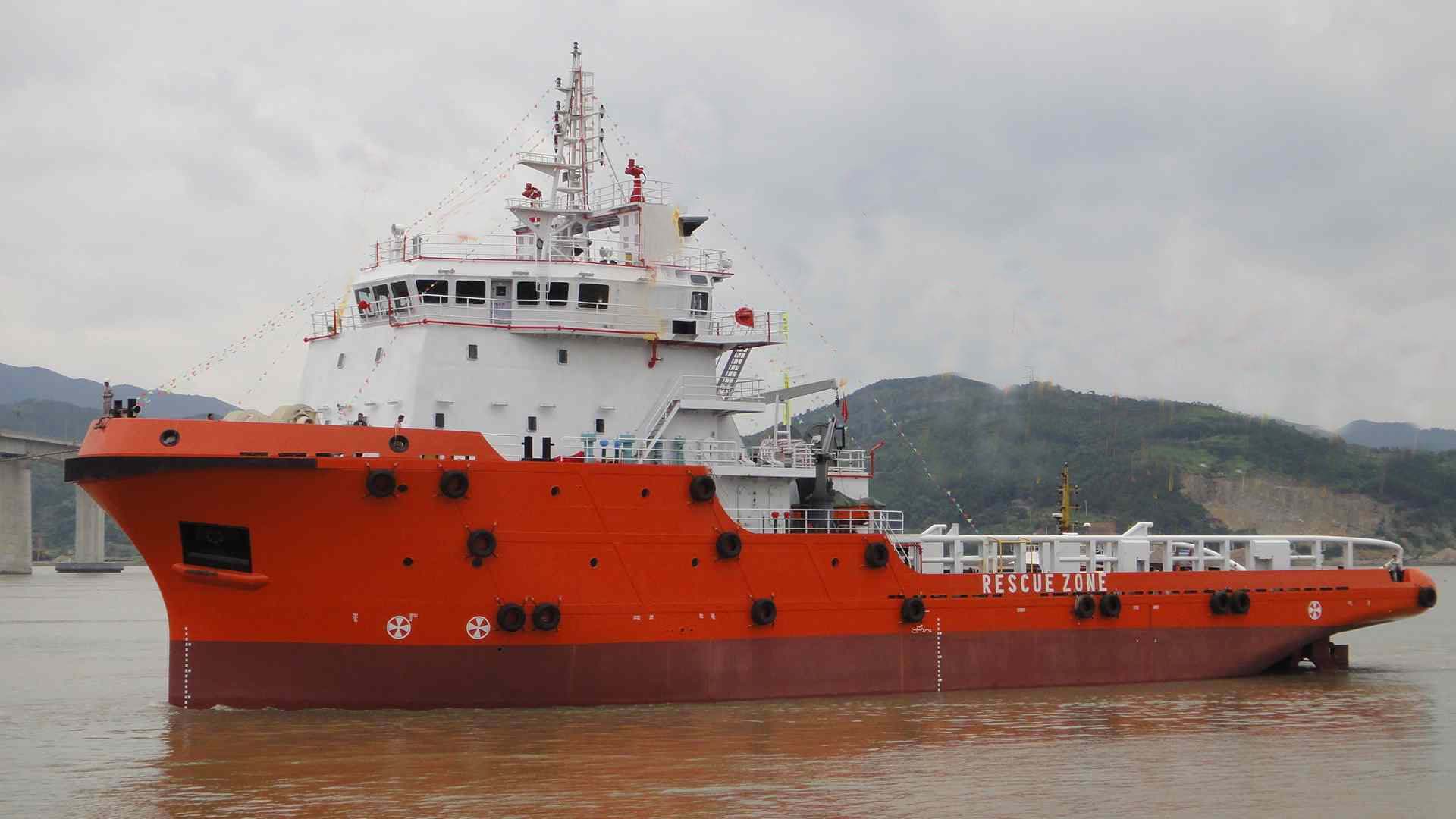

12,000hp AHTS DP1

Built in 2010 in CCS Classification A1+A2, FIFI1, DP1, this vessels is available ex China for prompt sale.

GWBOGUZ1059

Powered by twin IHI-S.E.M.T. Pielstick 12PC2-V400 (4415kW) main engines with three Yanmar 3xS165L-SN 360kW aux.
Bollard Pull 140t.

Bow thruster:
1xSP1500B/MSB-CP, Jiangsu/China, electricdriven 7 t
1xSP1400B/MSB-CP, Jiangsu/China, Electric driven 5.5 t
Stern thruster: 1Xsp1400A/MSB-CP, Jiangsu/China, Electric driven 7 t

Towing winch double drum: 150 T
Drum capacity: 2x1000 m/D72 mm
Towing line: L1000 m?D72 mm
Anchoring line: L1000 m?D72 mm
Stern roller: L4650 mmXD2500 mm
Shark jaw: 400 T hydraulic operation
Towing pin: 150 T hydraulic operation

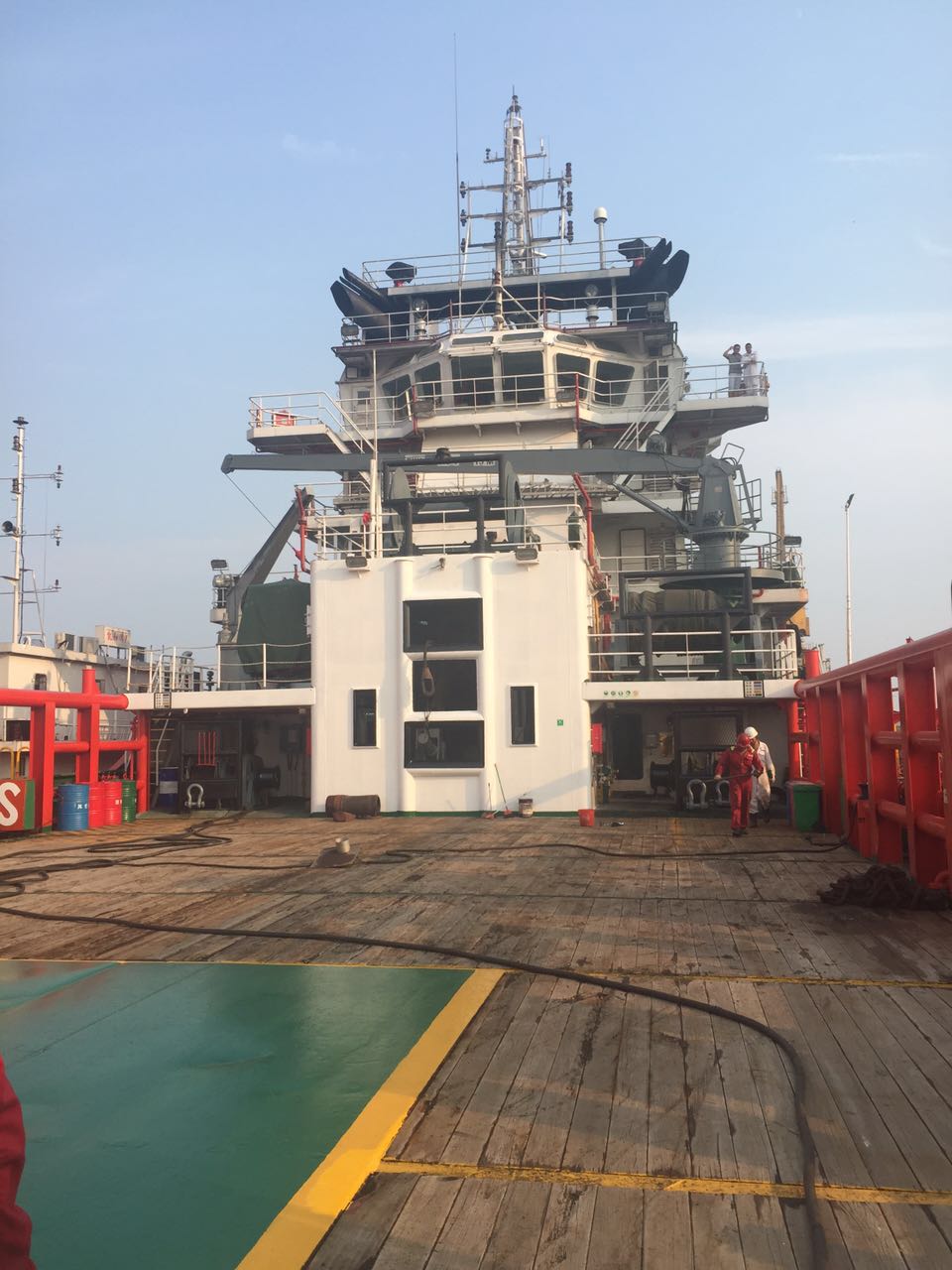

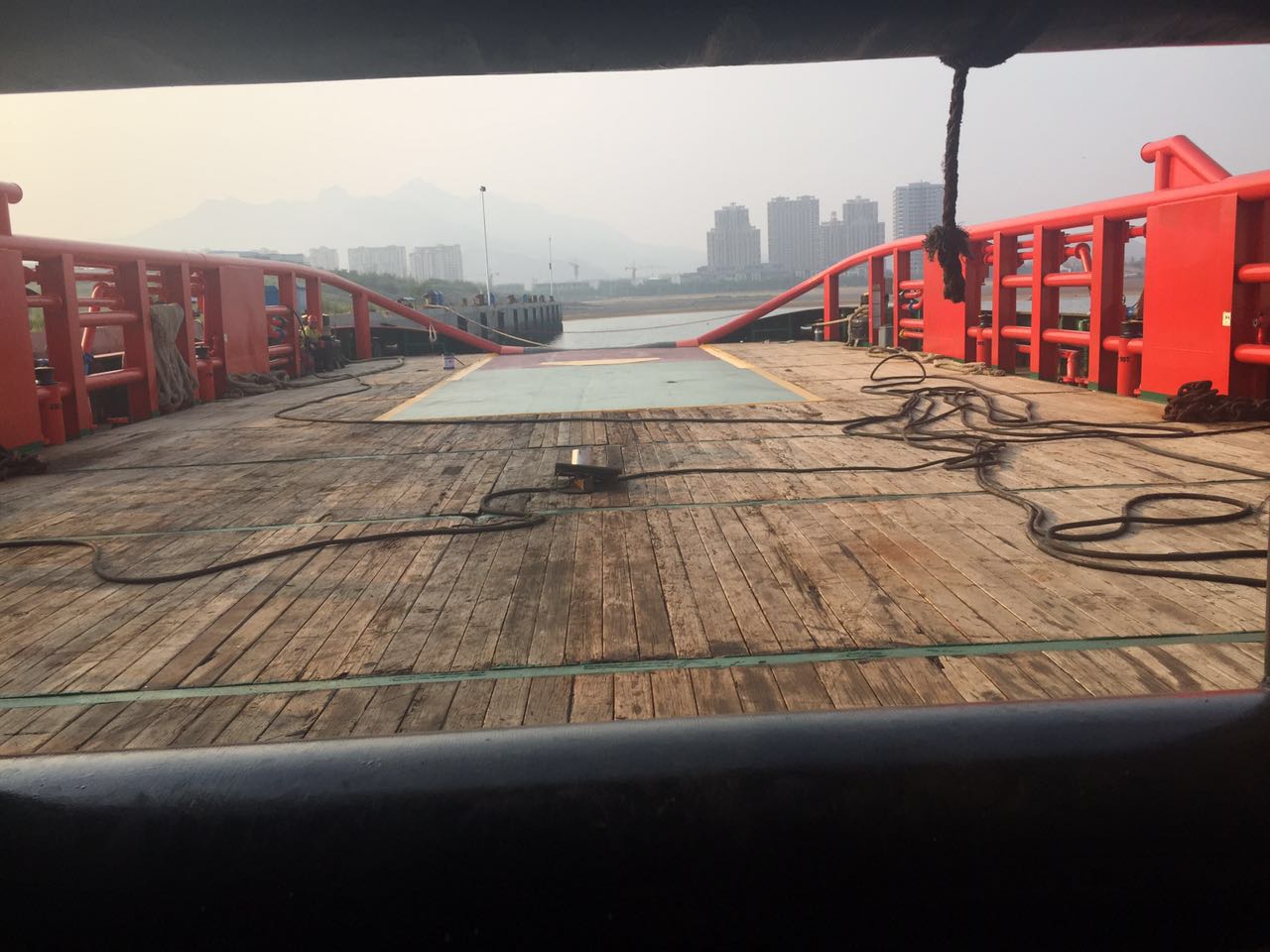

Deck Dimension:
Deck area: 500 m2
Deck cargo: 400-600t
Average strength: 7.5 t/sq.m

Cargo capacity:
Bulk cement: 200 cu.m (4 tanks)
Portable water: 459 cu.m
Drill/ballast water: 473 cu.m
Diesel oil: 868 cu.m
Mud tank: 461 cu.m
Anchor tank: 85 cu.m

Cargo delivery speed:
Bulk cement: 16.2 cu.m /min at0.75MPa
Portable water: 200 cu.m/hr@100m
Drill/ballast water: 150 cu.m/hr at0.90MPa
Diesel oil: 180 cu.m/hr @100m
Mud: 55 cu.m/hr at1.84MPa

The vessel is available for inspection by appointment.

For a more detailed specification, please feel free to contact us.
